Materials: Polyamide(Nylon)
Density: 1.14g/cm³
Melting Point: 218-258℃
Abrasion Resistance: Excellent
UV Resistance: Good
Single point mooring rope
Materials: Polyamide(Nylon)
Density: 1.14g/cm³
Melting Point: 218-258℃
Abrasion Resistance: Excellent
UV Resistance: Good
Product Details

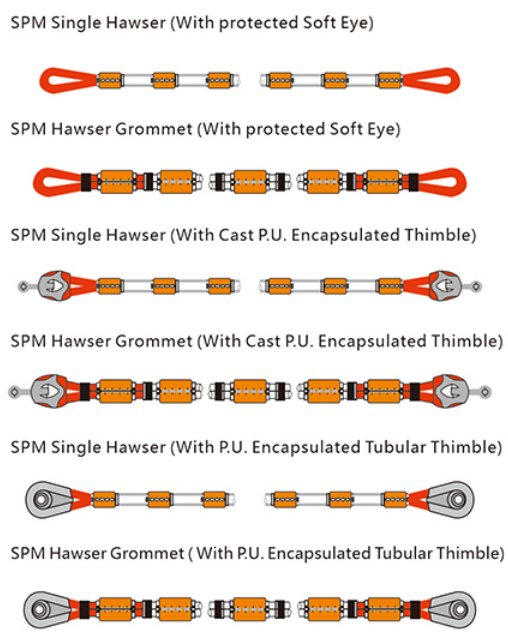

POLYAMIDE (NYLON) WITH JACKET is excellence in abrasion resistance and rope strength,which grants them the first choice for single point mooring applications. The ropes are spliced at both ends with galvanized cast thimbles and protective polyurethane coating to optimize the abrasion resistance. jacketed 12-strand polyamide ropes come with buoys so they float. This product is in compliance with OCIMF 2000 requirements.
![]()
![]()
Specifications
DIAMETER | CIRC | WEIGHT | BREAKING STRENGTH(Ton) | |
mm | inch | kg/100m | Single Leg | Grommet |
80 | 10 | 398 | 148 | 252 |
88 | 11 | 482 | 179 | 304 |
96 | 12 | 572 | 208 | 354 |
104 | 13 | 672 | 250 | 425 |
112 | 14 | 772 | 288 | 490 |
120 | 15 | 887 | 327 | 556 |
128 | 16 | 1010 | 368 | 626 |
136 | 17 | 1140 | 419 | 712 |
144 | 18 | 1280 | 460 | 782 |
152 | 19 | 1420 | 501 | 852 |
160 | 20 | 1580 | 551 | 937 |
168 | 21 | 1740 | 599 | 1018 |
